Specification
|
MAC.002014
|

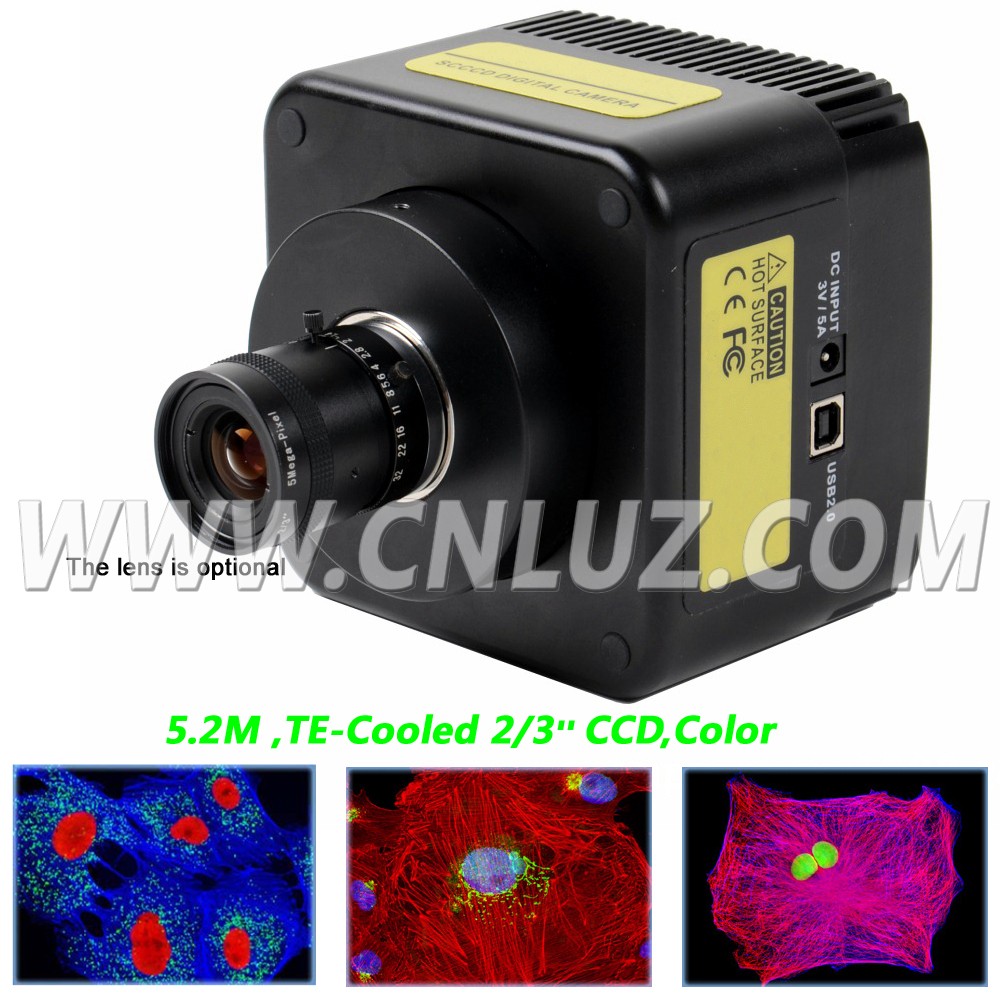

| Image Pickup Device | SONY ICX655AQ CCD (Color) |
| Sensor Size (Diagonal) | 2/3“ (9.93mm(H) x 8.70mm(V), Diagonal 11.016mm) |
| Pixel Size | 3.45μm x 3.45μm |
| Max. Resolution | 2448 x 2050 (Approx .5,018,000 Pixels) |
| Scan Mode | Progressive |
| Frame Rate | 4.3fps @2448 x 2050, 10.5fps @960X720 (Multiple Speed Level) |
| Spectral Range | 380-650nm (with IR-filter) |
| A/D Converter | 12-bit Parallel, 8-bit R.G.B to PC |
| Dynamic Range | 70dB |
| SN Ratio | 72dB |
| G Sensitivity | 420mV with 1/30s Accumulation |
| Binning | 1 x 1 |
| Exposure | 0.22ms~60s, ROI Auto & Manual |
| White balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Peak Quantum Efficiency | 60% |
| Readout Noise | N/A |
| Extinction Ratio | N/A |
| Smear | N/A |
| Capture/Control API | Native C/C++, C#, Directshow, Twain, Labview |
| Recording System | Still Picture and Movie |
| Cooling System* | TE-Cooled CCD - 20 °C below Ambient Temperature |
| Operating System |
Microsoft Windows XP / Vista / 7 / 8 (32 & 64 bit) |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or higher Memory:2GB or more USB port:USB2.0 High-speed Port Display:17" or larger CD-ROM |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| INTERFACE | USB2.0 |
|
Power Supply |
DC 5V over PC USB port for Camera |
