Applications: assembly line piece-line detection, license plate recognition capture, microscopic image acquisition and many other fields.
|
Specification
|
MAC.031006
|
|
Senser
|
1/2" SONY Color CMOS Sensor |
|
Pixels
|
3.0M
|
|
Max Resolution
|
2048*1536 |
|
Pixel Size
|
3.2μm×3.2μm
|
|
Max FPS
|
5fps (2048*1536)
|
|
Output Digi
|
8 Bits
|
|
SNR
|
43dB
|
|
Dynamic Range
|
61dB
|
|
Sensititive (550nm)
|
1.0V/lux-sec
|
|
Output Data Interface
|
USB 2.0 |
|
Power Supply
|
USB Power Supply
|
|
Lens Mount
|
C Mount
|
|
System
|
Windows 2000, WindowsXP,Windows 7,Windows Vista |
|
Software
|
Support DirectShow , Twain and LAbview. Including OCX, SDK and Measuring Software
|
|
Other Function
|
Auto/Manual Black Balance |

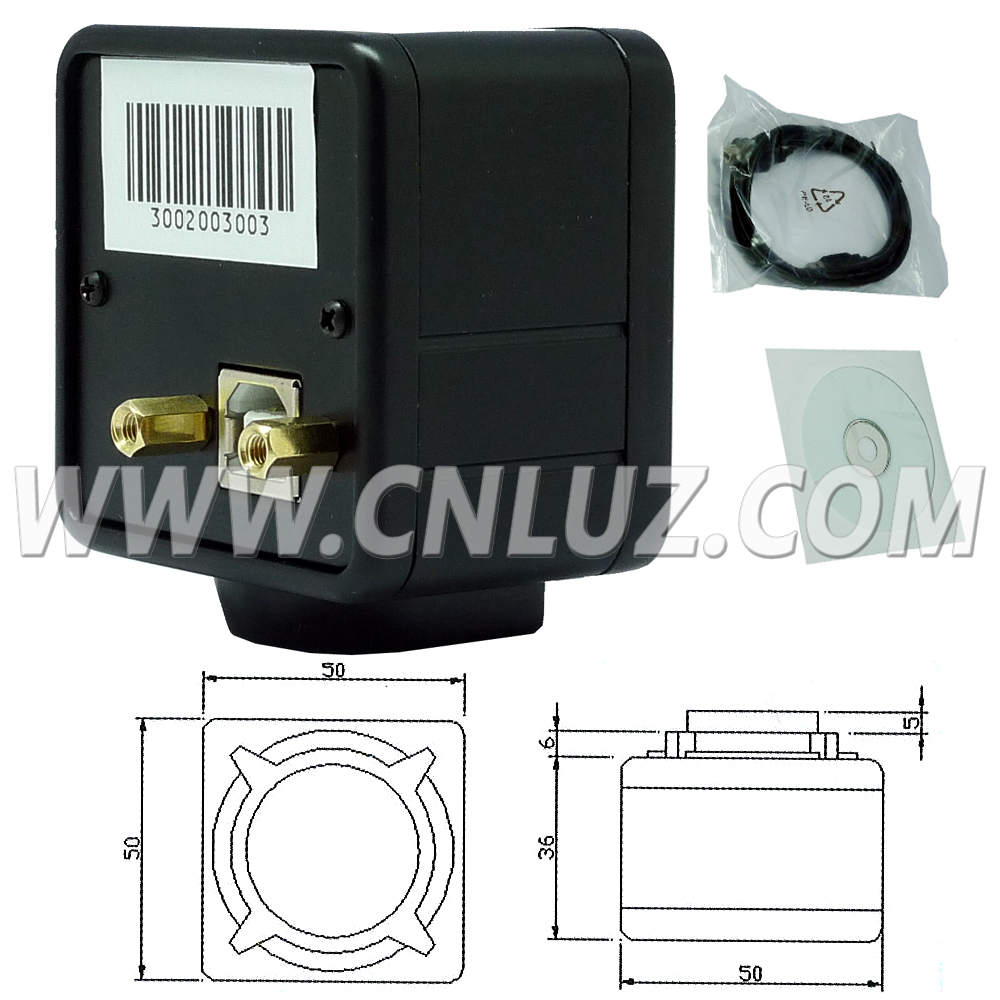

| Product Size |
50*50*46mm
|
