MFU.023082Trinocular Upright Fluorescent, 40X~1000X, Halogen
  • /usr/575/images/Products/Y/57518615.jpg
  • /usr/575/Picture/Y/11503.jpg
  •
  •

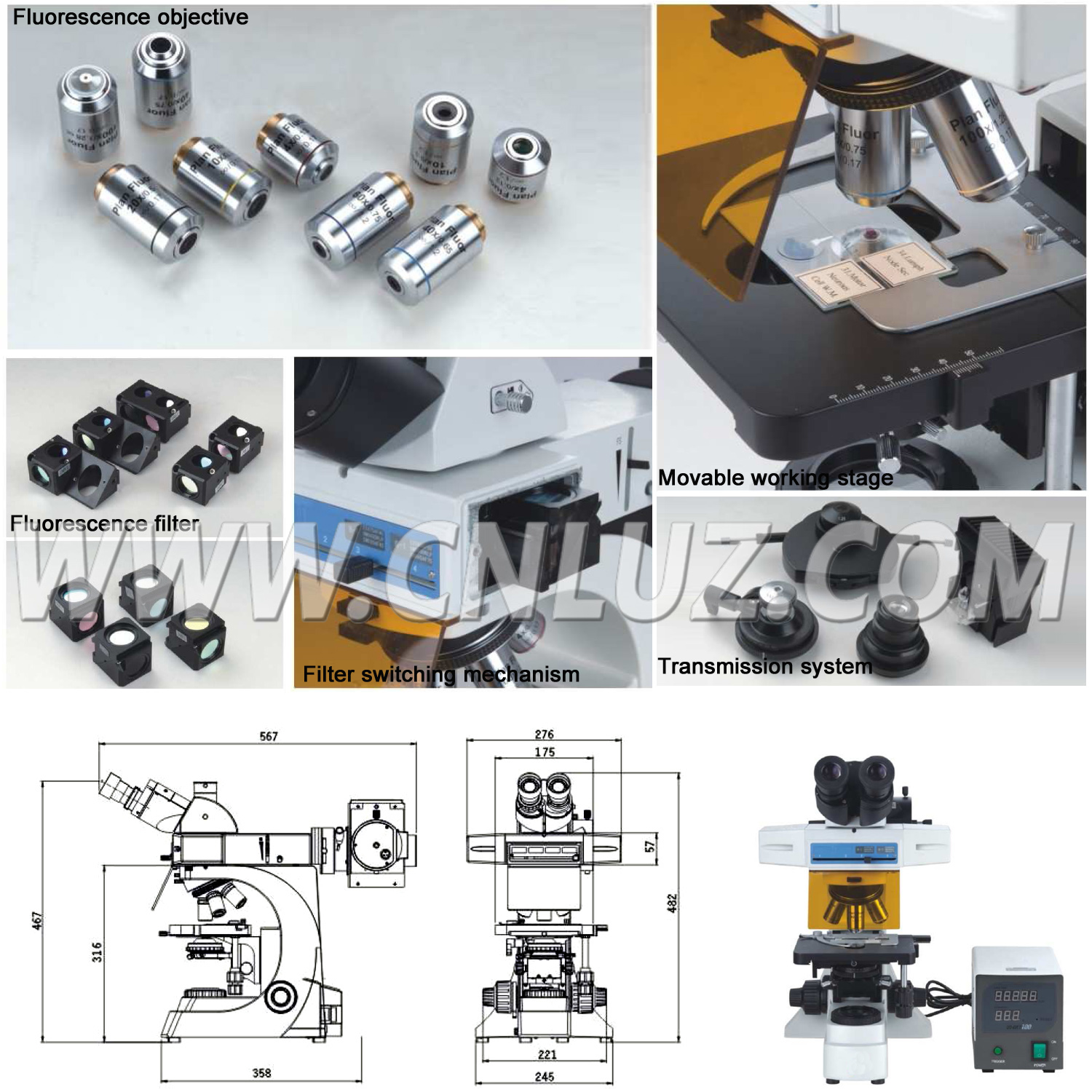

  • Infinite chromatic aberration correcting optical system, multifunctional infinite flat field half complex fluorescent objective lens provides high resolution fluorescence image which is clear and bright and dark backgrounds.
  • Special fluorescent lighting system is equipped with full digital control system for power supply.Safe and high efficient.
  • With three fluorescence channels with a bright field channel.
  • Scientific grade cold CCD chip is high resolution and high speed of transmission.
  • Intelligent fluorescent image processing software, apply to all areas of fluorescence imaging analysis.
  • By using a dark field condenser, contrast condenser (with phase contrast objective), polarizing accessory, dark field, phase contrast, polarizer can achieve many observation methods.
Specification
MFU.023082
Optical System Color Corrected Infinity Optical System
Head Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Eyepiece
PL10x/22m, High Eyepoint, With Eye-cup
Objective Semi-APO Infinity Plan Fluorescence Achromatic Objectives 4x/0.13, W.D. 15.13mm
Semi-APO Infinity Plan Fluorescence Achromatic Objectives 10x/0.30, W.D. 8.53mm
Semi-APO Infinity Plan Fluorescence Achromatic Objectives 20x/0.50, W.D. 2.33mm
Semi-APO Infinity Plan Fluorescence Achromatic Objectives 40x/0.75, W.D. 0.55mm
Semi-APO Infinity Plan Fluorescence Achromatic Objectives 100x/1.30 W.D. 0.21mm
Nosepiece
Reversed Quintuple Nosepiece
Focusing
Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm
Stage
Double Layer Mechanical Stage, 175*145mm, Moving Range 75*50mm, Moving Precision 0.1mm
Condenser
N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm
Filter Attenuation Plate, Transmit Ratio 25%
Blue Filter Dia.45mm
Adapter C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable
Illumination Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed
Fluorescence Illumination Reflection Flurescent Koehler Illmination, With Alterable Field Diahragm, Aperture Diaphragm, All Cente Adjustable
Mercury Lamp Housing With Viewfinder, Center And Focal Length Of Viewfinder Or Filametn Can Be Adjusted
Digital Power Control Box For Mercury Lamp, Wide Voltage 90~245V AC
Eye Protecting Board
Fluorescnet Filter OSRAM UV
OSRAM B
OSRAM G
Oil Fluorescent Free Oil
Stand Ergonomic Design, The Inverted "Y" Shape, Support Microscope Extra Lateral Stability
Power 90~240V Wide Range Voltage

Item
Optional Accessories
Eyepiece
 PL10x/22m, High Eyepoint
PL10x/22r, Plan Eyepiece with Cross, High Eyepoint

Infinity
Plan Phase Contrast Set

 Centering Telescope
Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm
Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm
Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm
Infinity Phase Contract Disc Condenser, Abbe N.A.1.25
Fluorescnet Filter OSRAM V
Dark Field Dark Field Condenser, Immersion, N.A=1.2
Dark Field Condenser, Dry, N.A=0.9
Polarizing Set Rotatable Working Stage
Polarizer, Dia. 45mm
Analyizer Slide
λ Slide
Filter Green, Dia.45mm
Yellow, Dia.45mm
Attenuation Plate, Transimision 50%
Neutral, Dia.45mm
Adapter



 C-Mount, 1.0x, Focus Adjustable
C-Mount 0.5x, Focus Adjustable , for 1/2 CCD
C-Mount 0.35x, Focus Adjustable, for 1/3 CCD
