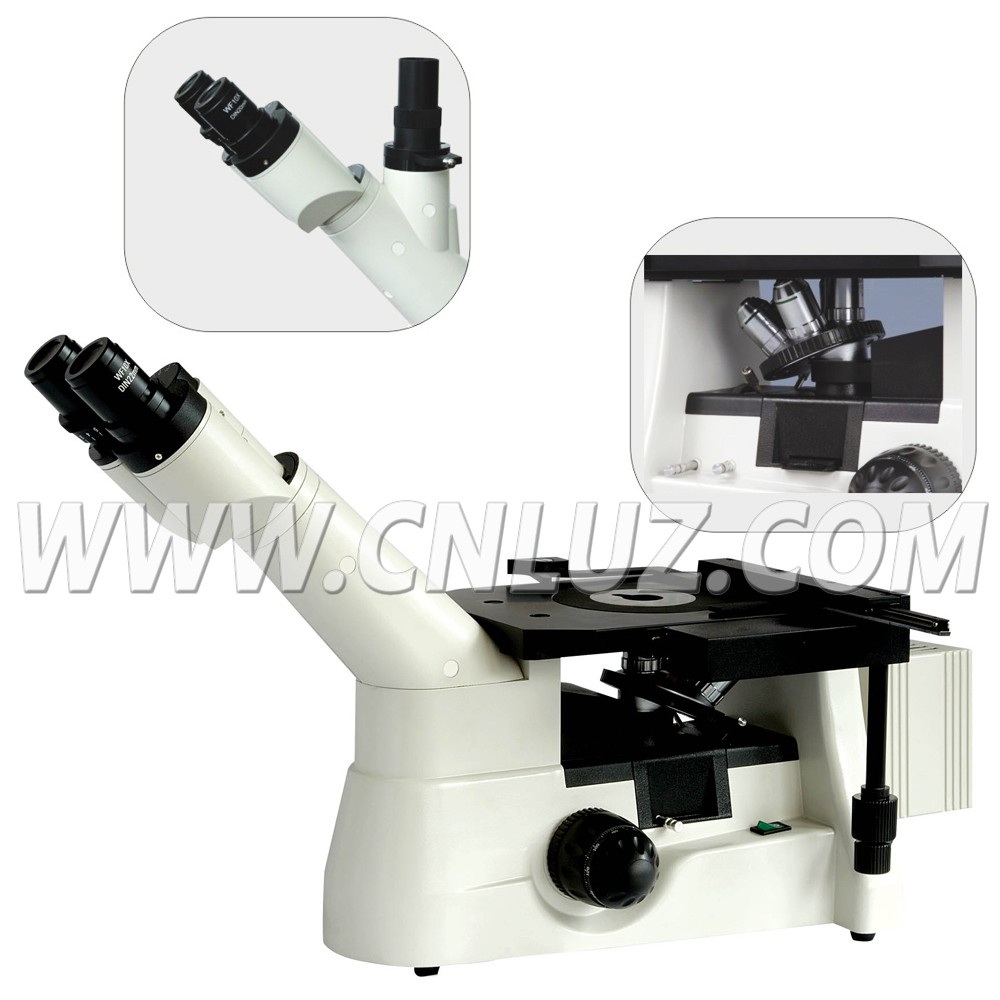

Inverted Metallurgical, Binocular/Trinocular, Infinity Metallurgical Objective, 40X~400X,

MMI.040022Inverted Metallurgical, Binocular/Trinocular, Infinity Metallurgical Objective, 40X~400X,

MMI.040022 is equipped with Infinity Metallurgical Objective 4X/10X/20X/40X

If you want choose 195 Metallurgical Objective 4X/10X/20X/40X model, pls find MMI.040021

This series microscope is widely used in observation & analysis of metallurgical organization in Mechanical industry, Research of Geological & Mineral department and viewing & measuring crystal, integrate circuit, micro-electronics, etc in Electronic industry.
It is the first choice of Factories, Academy, Scientific research organization contrast image.
Novel figure and superior craftsmanship keep abreast of the tidal current much more.Humanized configuration design and simple operation, Let you release from the pressure of heavy work

Specification	MMI.040022-B	MMI.040022-T
Head	Compensation Free Binocular,45°inclined,50mm-75mm	Compensation Free Trinocular,45°inclined,50mm-75mm
Eyepiece	Wide field WF10X/22mm
	Wide field WF10X/20mm with crosshair 0.1mm
Objective	Infinity Metallurgical Objective 4X/0.1 W.D. 25mm
	Infinity Metallurgical Objective 10X/0.25 W.D. 12mm
	Infinity Metallurgical Objective 20X/0.4 W.D. 10mm
	Infinity Metallurgical Objective 40X/0.6 W.D. 7.1mm
Nosepiece	Quadruple
Focusing	Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
Stage	Double Layer Mechanical, Central Stage: Φ110mm (Size242mmX172mm,Moving Range:75mmX50mm)
Flashboard Filter	Blue Filter
	Green Filter
	Yellow Filter
EPI-Kohler Illumination	EPI-Kohler Illumination,Apertrue Iris Diaphragm and Field Iris Diaphragm
Light Source	12V/30W,AC 85V-230V Halogen Bulb,Adjustble Brightness
Polarizing Device	Analyzer Rotatable 360°, Polarize &Analyzer can be moved in/out of the Optical Path
Checking Tool	0.01mm Micrometer
